Introduction

Bill of materials can be found here:

https://github.com/satnogs/satnogs-anten...

CAD drawing (and designs) can be found here:

https://github.com/satnogs/satnogs-anten...

The Emerson calculation model can be found here:

http://oldsite.rac.ca/en/amateur-radio/o...

Enter 437Mhz as the frequency and 8 turns.

We start by shaping up the wire. Print and stick to a surface the design of your antenna Cut a 8m piece of Galvanize Steel wire 2mm thick.
  • We start by shaping up the wire.

    • Print and stick to a surface the design of your antenna

    • Cut a 8m piece of Galvanize Steel wire 2mm thick.

  • Using a cylinder slightly smaller than the radius of the helix (in our case 130mm) start wrapping the steel wire around it. Repeat multiple times, till it starts to approximate the needed diameter.

  • You should end up with a nice spring-like piece of steel wire.

Add Comment

Next, we need to mark the PVC pipes Cut 3x140cm Φ16 PVC pipes. Using the design, mark the T-Holder positions on the pipes (3 each).
  • Next, we need to mark the PVC pipes

    • Cut 3x140cm Φ16 PVC pipes.

    • Using the design, mark the T-Holder positions on the pipes (3 each).

  • Then we need to mark the wire notches on the pipes. Consult the design for exact dimensions. 165mm is the spacing between marks for each pipe.

  • Make sure that on each pipe the marks are offseted by 1/3 of 165mm from the previous one. Refer to design if in doubt.

  • Finally, make the notches using a file (tool) on approx. 30 degrees inclination.

Add Comment

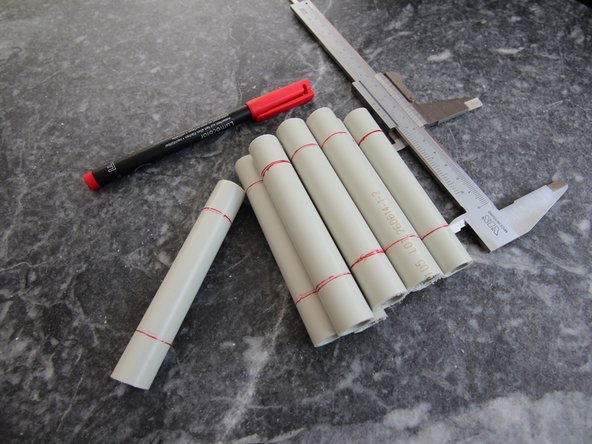

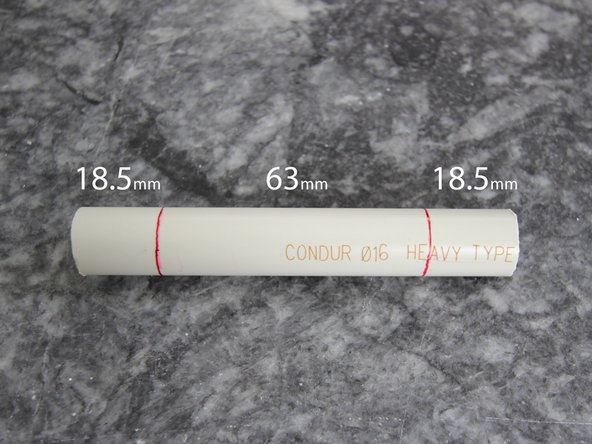

Using the remaining PVC pipe, cut 9 pieces 10cm long each. Mark as shown on second picture, 2 rings that will be used as guides for fitting later. You should have 9 pieces marked in total.

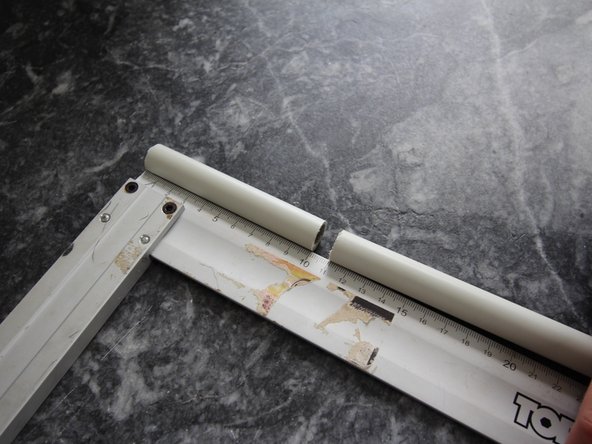

  • Using the remaining PVC pipe, cut 9 pieces 10cm long each.

  • Mark as shown on second picture, 2 rings that will be used as guides for fitting later.

  • You should have 9 pieces marked in total.

Add Comment

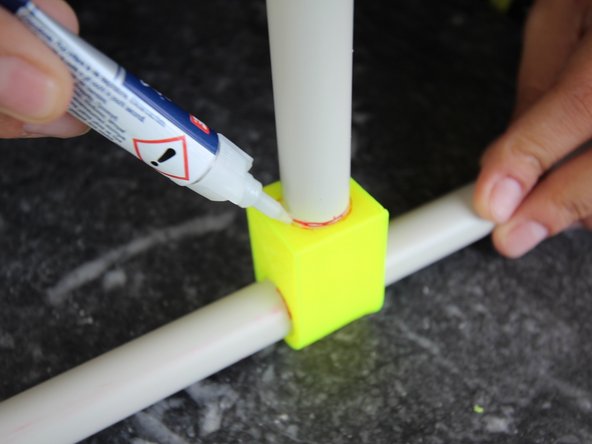

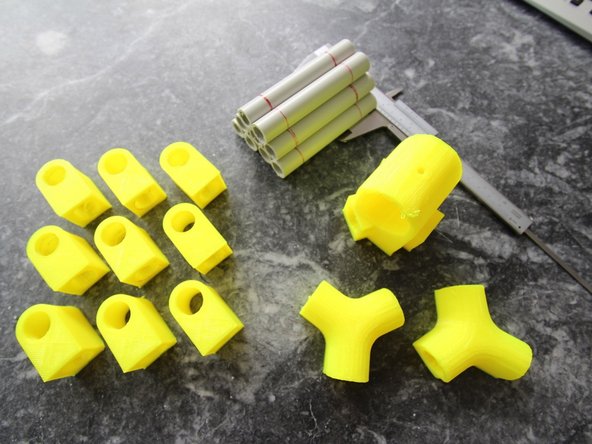

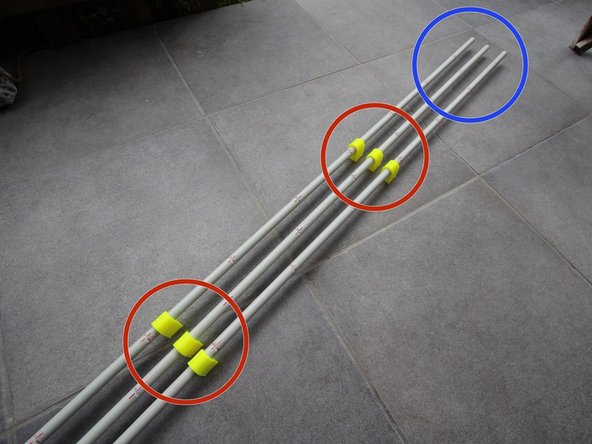

For the antenna structure assembly you will need everything from previous steps plus the following 3D printed parts: 9x T-connectors, 2x Y-connectors, 1x YO connector Put 6 of the T-connectors in place as shown, driven by the design.
  • For the antenna structure assembly you will need everything from previous steps plus the following 3D printed parts:

    • 9x T-connectors, 2x Y-connectors, 1x YO connector

  • Put 6 of the T-connectors in place as shown, driven by the design.

  • Make sure not to put the 3 outer ones (as you will need to put the reflector first in place).

  • Using 6 small PVC pipes (see previous step) glue them in the 6 T-connectors as shown.

Add Comment

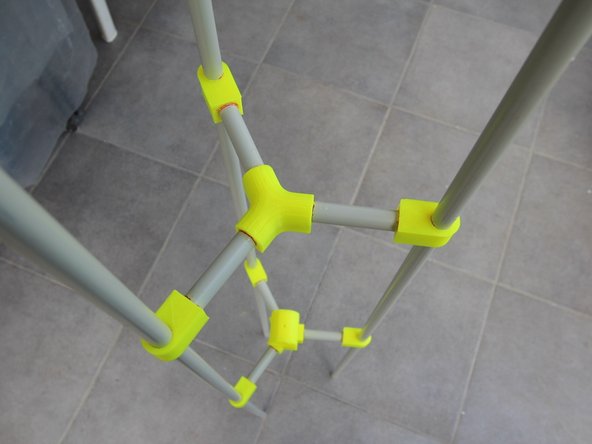

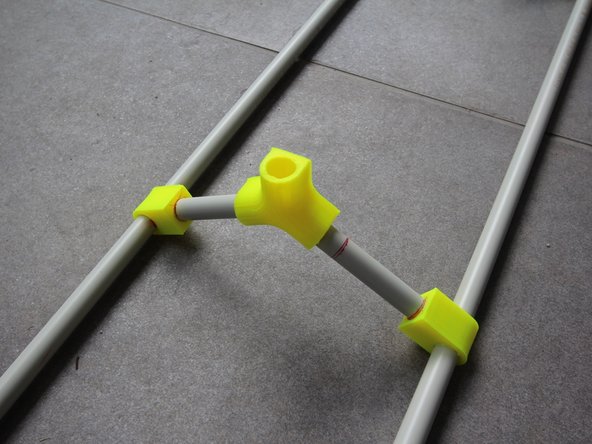

Use 1 Y-connector and the YO-connector to put the assembly together Use the markings from previous steps, and consult the design for exact dimensions. Make sure that Spacing is 63mm
  • Use 1 Y-connector and the YO-connector to put the assembly together

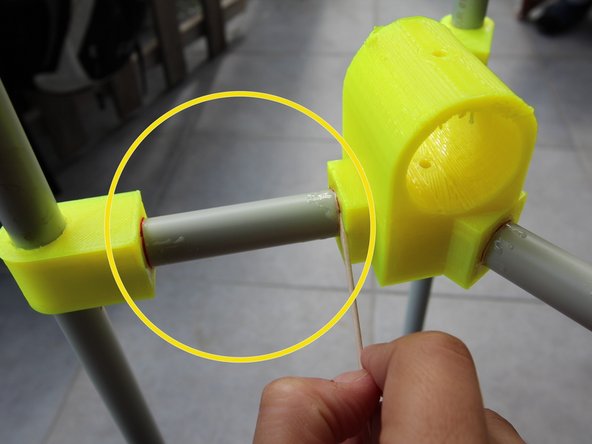

  • Use the markings from previous steps, and consult the design for exact dimensions.

  • Make sure that Spacing is 63mm

  • Leave for a couple of minutes for the glue to cure.

Add Comment

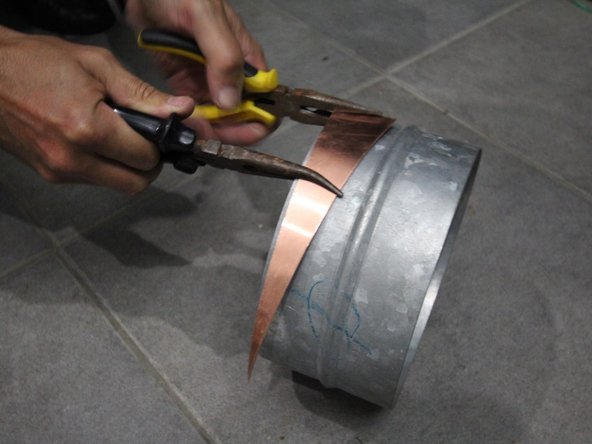

Take a galvanized steel grid of approx. 41x41cm. Mark the holes for the PVC pipes with your printed design and cut the holes through the steel grid. Bend the brass triangle (see bom) using the metal cylinder as a guide. Make sure it is bended on the right direction.

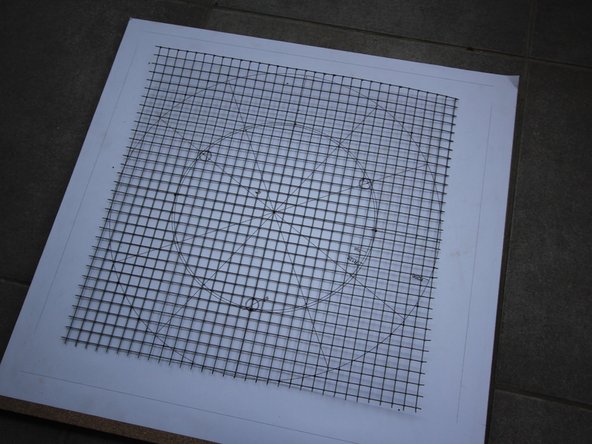

  • Take a galvanized steel grid of approx. 41x41cm.

  • Mark the holes for the PVC pipes with your printed design and cut the holes through the steel grid.

  • Bend the brass triangle (see bom) using the metal cylinder as a guide. Make sure it is bended on the right direction.

    • The brass triangle (ortho 204x41mm) will be used as a matching strip.

Add Comment

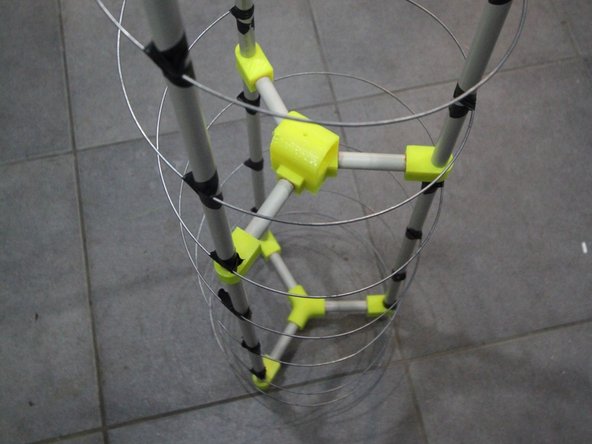

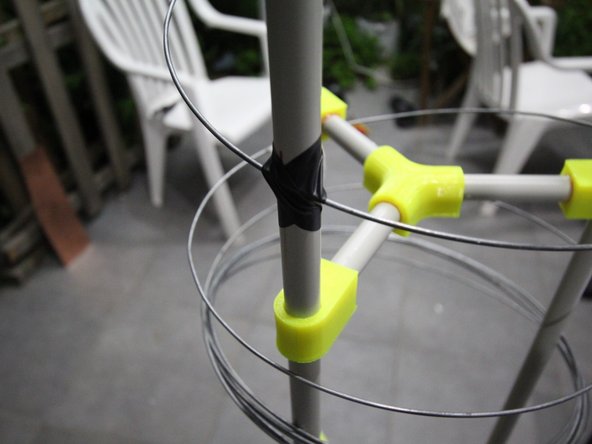

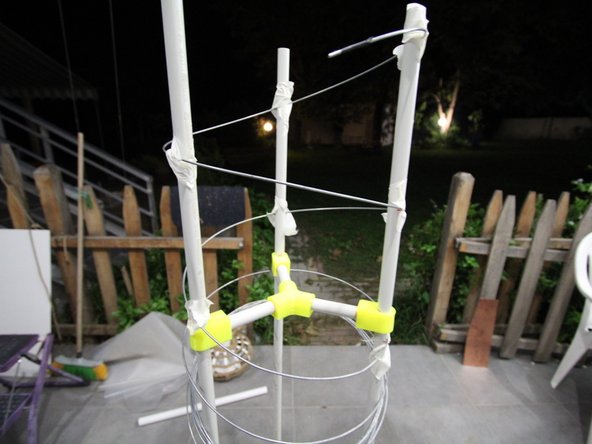

Start positioning the helix in place, holding it temporarily with tape. Work your way down to the base. Position the last Y assembly temporarily if needed.
  • Start positioning the helix in place, holding it temporarily with tape.

  • Work your way down to the base.

  • Position the last Y assembly temporarily if needed.

Add Comment

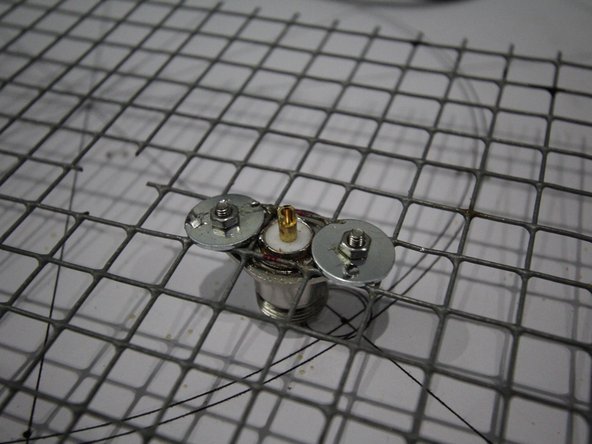

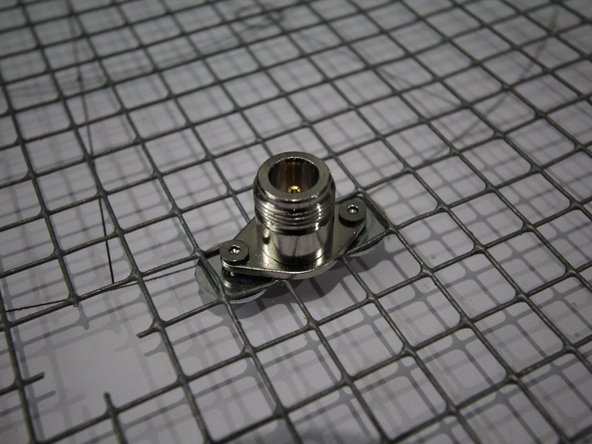

Next we will be installing the N-type connector to our ground plane. Any N-type connector (or other connector you would like) can fit. Just make sure you are not short-circuiting the core with the outside casing.
  • Next we will be installing the N-type connector to our ground plane.

  • Any N-type connector (or other connector you would like) can fit. Just make sure you are not short-circuiting the core with the outside casing.

  • In our case we are using 2x M3x10mm with 2xM3 nuts and 2x M4 washers (to fit our grid)

  • You can optionally solder the whole thing together, just to be on the safe side for the connection.

Add Comment

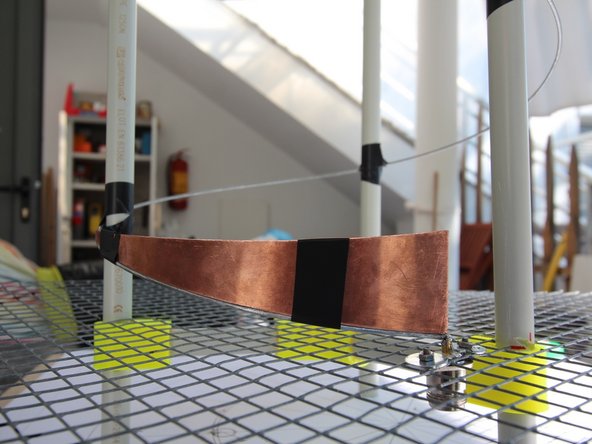

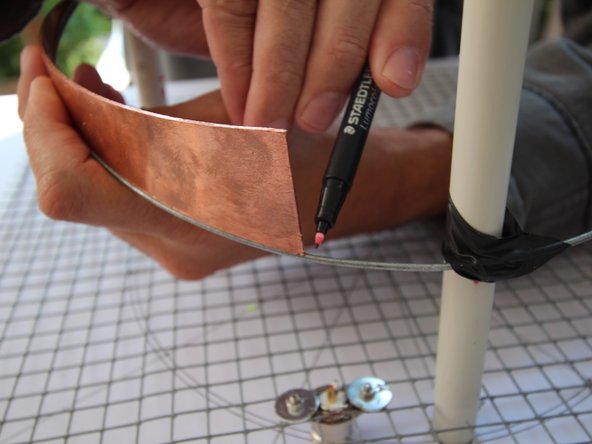

Using the brass triangle as a guide mark the end of the wire Consult the design for the exact location of the grid along the pipes, and make sure you account for the N-type connector location (and core height) Using sand paper, scrap off the galvanized coating of the wire. This will make soldering possible.
  • Using the brass triangle as a guide mark the end of the wire

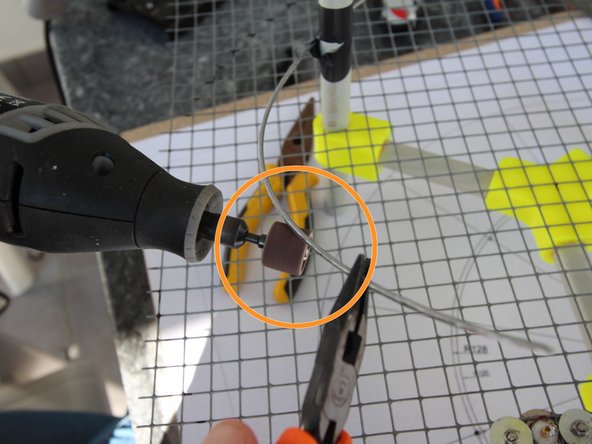

    • Consult the design for the exact location of the grid along the pipes, and make sure you account for the N-type connector location (and core height)

  • Using sand paper, scrap off the galvanized coating of the wire. This will make soldering possible.

  • Secure the brass triangle in place (see designs too) with tape. You can either choose to cut the wire or use it along the triangle. (depends on how you will solder, and how comfortable you are with it)

  • Best matching of the signal will be achieved with a smooth transition from the wire to the triangle and then to the n-type core.

Add Comment

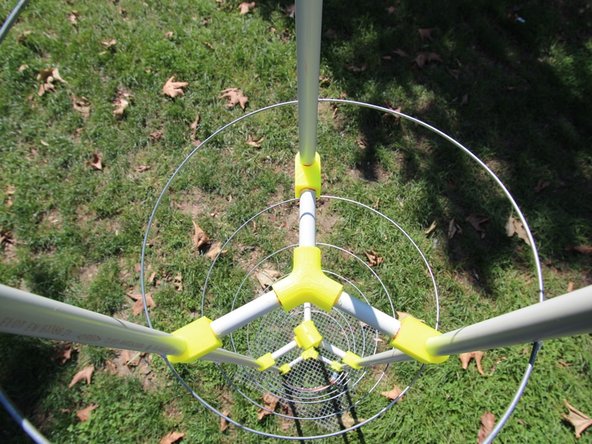

Start removing the black tape that holds the wire on the pipes. Using a glue gun, secure the wires in place. You can add some tape on top of it for additional securing. Solder the triangle on the wire as shown, or cut the wire and solder the triangle end to end with n-type and wire.

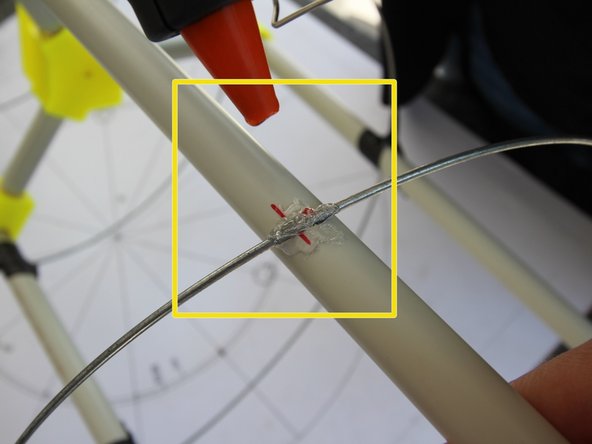

  • Start removing the black tape that holds the wire on the pipes.

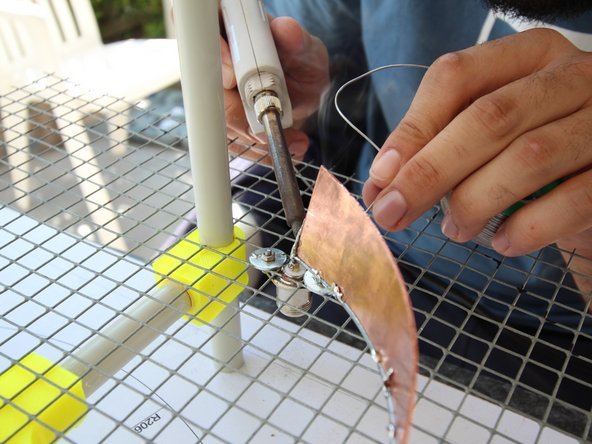

  • Using a glue gun, secure the wires in place. You can add some tape on top of it for additional securing.

  • Solder the triangle on the wire as shown, or cut the wire and solder the triangle end to end with n-type and wire.

  • Your Helical antenna should now be ready!
